Ordinal Systems Architecture: A Control Grammar for Enterprise AI Authority

Ordinal Systems Architecture: A Control Grammar for Enterprise AI Authority

Abstract

Enterprise AI systems are increasingly deployed as delegated actors within governed enterprises rather than as conventional applications. This shift exposes a gap in the existing enterprise architecture (EA) toolchain: current frameworks describe components, viewpoints, methods, and risk vocabulary, but none specify the authority semantics by which an AI capability is allowed to act. The result is a recurring failure mode in which technical capability is conflated with operational authorization. Ordinal Systems Architecture (OrdSA) introduces a control grammar for that gap. It organises AI capability into seven ordinal layers (Enterprise Intent, an Enterprise AI Orchestrator, Capability Domain Orchestrators, Agents and Workflows, Tools and Execution Channels, a Data and Knowledge Substrate, and an Outcome–Audit–Feedback closure) and governs them with a single architectural principle: authority flows downward, evidence flows upward, and no lower ordinal layer may expand its own authority. OrdSA is canonicalised as a versioned, tool-neutral YAML schema rather than as prose, making conformance mechanically checkable and positioning the construct as complementary to TOGAF, the Unified Architecture Framework, ArchiMate, the NIST AI Risk Management Framework, Zero Trust Architecture, IAM/PAM, policy-as-code, and DevSecOps. This paper presents the construct, its governance principle, the schema-first canonical form, the five-rung execution-rights ladder applied at the tools layer, the related-work positioning, the conformance assertions a conforming deployment must demonstrate, and a worked scenario that traces an AI coding agent through allow, refuse, and escalate paths across the ordinal stack.

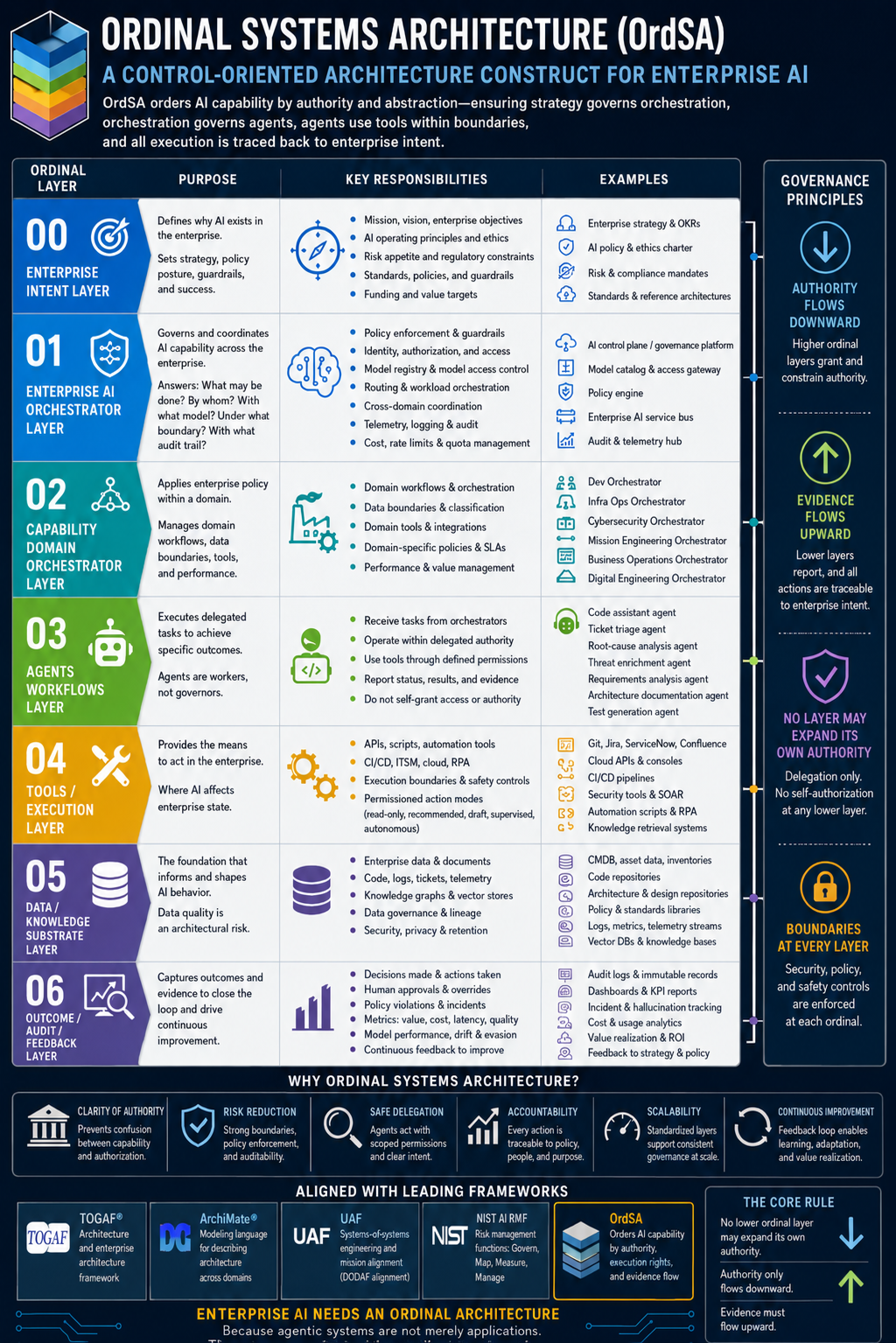

Ordinal Systems Architecture: seven-layer authority stack with the governance principle and alignment to TOGAF, ArchiMate, UAF, and NIST AI RMF

1. Introduction

Enterprise AI is treated, in much current architectural practice, as another category of application. Reference architectures place “AI services” alongside business applications and data platforms. Governance is delegated to model selection, prompt review, and post-hoc evaluation. The implicit theory of the AI component is that it is a deterministic function with some uncertainty in its output, a function to be procured, deployed, and monitored like any other.

This treatment fails at a specific point: when an AI capability acts. An AI system that drafts code may push to a repository. An AI system that triages tickets may close them. An AI system that analyses requirements may issue change requests downstream. The activity is not the production of a result, the way a report generator produces a report. It is delegated execution within a governed enterprise. The AI acts in the name of an actor (a team, an orchestrator, a policy regime), within an envelope defined by that actor, and produces effects on enterprise state.

What follows from treating AI as a delegated actor is a separation the application paradigm collapses: the distinction between what the AI can do and what it is authorised to do. A model may, in the technical sense, be capable of issuing a database modification, escalating an incident, or closing a finding. None of those capabilities are claims about authorisation. The decision to confer authority is an architectural and policy decision, not a technical one. Capability and authority are independent dimensions, and the enterprise architecture must carry both.

The frameworks the EA community already uses do not name this separation. TOGAF (The Open Group, 2022) gives a method for developing architecture across business, data, application, and technology layers, but its application layer treats agents as application components. ArchiMate (The Open Group, 2023) provides relationship semantics for components but no native vocabulary for authority delegation between AI components. The Unified Architecture Framework (Object Management Group, 2022) offers a mission-aligned viewpoint stack but no viewpoint specifically scoped to AI capability authority. The NIST AI Risk Management Framework (NIST, 2023) supplies risk-management vocabulary (govern, map, measure, manage) but presupposes an architecture to govern, map, measure, and manage. It does not specify what that architecture looks like such that the four functions can be applied with consistent granularity.

Ordinal Systems Architecture addresses that gap. It is not a new EA method, modelling language, viewpoint stack, or risk vocabulary. It is a control grammar: a small, precise vocabulary for the authority relationships between AI components in an enterprise. Its core thesis is the separation OrdSA insists on:

Enterprise AI cannot be governed only by components. It must be governed by order.

The remainder of this paper develops that thesis. Section 2 presents the construct: the four ordering dimensions that motivate the term ordinal, the seven layers, the governance principle, the five-rung execution-rights ladder at the tools layer, and the credential posture that follows. Section 3 argues for canonicalising the construct as a versioned tool-neutral schema rather than as prose, describes the construct/deployment two-schema model, and shows an abbreviated schema excerpt with a failing conformance condition. Section 4 positions OrdSA against TOGAF, UAF, ArchiMate, NIST AI RMF, Zero Trust Architecture, and adjacent disciplines (IAM/PAM, policy-as-code, DevSecOps), with a gap analysis table. Section 5 describes the canonical visual notation and the schema-driven rendering pipeline. Section 6 catalogues the per-layer anti-patterns the schema surfaces as concrete failure modes practitioners can recognise. Section 7 describes the conformance assertions a conforming deployment must demonstrate. Section 8 walks a worked scenario, tracing an AI coding agent through allow, refuse, and escalate paths across the ordinal stack. Section 9 closes with the work in motion for the next minor version.

2. The Construct

2.1 Why “Ordinal”

The construct’s name was chosen deliberately. Ordinal means ordered, not merely indexed. OrdSA’s layers are ordered along four dimensions simultaneously:

  1. Authority: what each layer is allowed to decide.
  2. Abstraction: how close to strategy the layer is, versus how close to execution.
  3. Risk: how much enterprise state the layer can change.
  4. Execution rights: what kinds of state change the layer can effect (read-only, recommend-only, draft-only, supervised, autonomous).

A higher ordinal defines or delegates the authority envelope within which lower ordinals operate. It may delegate any portion of that envelope downward, but a lower ordinal cannot reach upward and acquire rights it was not granted. This is the same structural pattern that governs real enterprises: strategy authorises operations, operations authorise execution, and execution does not authorise itself. The pattern is unusual in current AI architectures, which routinely flatten these levels and treat a capable model as if capability sufficed for authorisation. OrdSA does not flatten them.

2.2 The Seven Layers

The seven layers, with the question each governs:

# Layer What it governs
O0 Enterprise Intent Mission, strategy, policy, risk appetite, standards
O1 Enterprise AI Orchestrator Governance, routing, identity, model access, policy enforcement
O2 Capability Domain Orchestrators Development, infrastructure, cybersecurity, mission engineering, business operations, digital engineering
O3 Agents and Workflows Task-specific AI workers under bounded delegation
O4 Tools and Execution Channels APIs, automation, ITSM, CI/CD, cloud, repositories
O5 Data and Knowledge Substrate Documents, logs, configuration management database (CMDB), code, policies, telemetry, vector stores
O6 Outcome, Audit, and Feedback Evidence, metrics, decisions, incidents, drift, value realisation

Each layer is briefly characterised below; full per-layer specifications are maintained as companion documents in the construct repository.

O0, Enterprise Intent. The strategic surface. Mission outcomes, enterprise objectives, policy posture, risk appetite, regulatory constraints, approved AI operating principles. O0 is mutated only by enterprise governance processes, never by AI activity. Lower layers receive bounded authority traceable back to an O0 element. The OrdSA conformance check that O0 policy is referenced by at least one O1 enforcement element flags policy paragraphs that never operationalise.

O1, Enterprise AI Orchestrator. The highest operational AI coordination layer. O1 does not perform AI work; it governs it. Its responsibilities are routing, identity, model access, policy enforcement, telemetry, agent registration, and cross-domain coordination. Per invocation, O1 answers: what may be done, by whom, with what model, under what boundary, and with what audit trail. O1 is the single broker for cross-domain coordination. Bypassing it (an agent that authenticates directly to a data system, for instance) is an architectural defect rather than an efficiency choice.

O2, Capability Domain Orchestrators. Domain-bounded delegation surfaces. Each O2 instance (a Development Orchestrator, an Infrastructure Operations Orchestrator, a Cybersecurity Orchestrator) inherits policy from O1 and applies domain-specific workflows, data boundaries, tooling, and approval chains. The construct schema disallows omnibus orchestrators that span domains; cross-domain work flows through O1, not through O2-to-O2 lateral coupling.

O3, Agents and Workflows. Where agentic systems operate. Agents are workers, not governors. They receive bounded tasks from orchestrators, execute within a stated envelope, and do not define their own authority, access, or policy. Agent tool access derives from the envelope, not from intrinsic agent properties. The schema marks any deployment in which an O3 element holds a general right to all tools as nonconforming.

O4, Tools and Execution Channels. Where AI begins to affect enterprise state. APIs, scripts, automation tooling, ITSM integrations, CI/CD pipelines, cloud consoles, knowledge retrieval interfaces, engineering repositories. O4 is the point of action enforcement: every tool verifies the envelope before acting, and refused actions emit evidence to O6. Tools that trust the caller without envelope verification are an OrdSA anti-pattern.

O5, Data and Knowledge Substrate. Enterprise data, documents, tickets, logs, CMDB, architecture repositories, codebases, policy libraries, threat intelligence, design repositories, and operational telemetry. O5 is not passive infrastructure. In AI systems, data shapes output behaviour, so context poisoning, stale documentation, ambiguous policies, and ungoverned retrieval pipelines are architectural risks rather than mere data-quality issues. Every read is a context insertion attributable to an identity established at O1.

O6, Outcome, Audit, and Feedback. The append-only record. Every state-changing action and every policy refusal emits evidence to O6. Aggregated evidence surfaces back to O0 to close the policy loop. AI architecture that lacks O6 telemetry is unverifiable theatre: the system may behave correctly, but the enterprise has no architectural means to confirm it.

2.3 The Governance Principle

The architectural core of OrdSA is a single principle stated in three lines:

Authority flows downward across layer ordinals.
Evidence flows upward across layer ordinals.
No lower ordinal layer may expand its own authority.

Every other rule in OrdSA is a consequence of this principle. The schema’s conformance assertions mechanise each line. The execution-rights ladder at O4 ensures that the third line is structurally enforceable rather than merely aspirational. The evidence-flow obligation at O6 closes the loop the first two lines open.

2.4 Execution Rights at O4

OrdSA defines five execution rights, ordered by the degree of state change they permit. Each O4 tool declares one of these rights per task class it serves:

Right Effect Human approval per action
read_only No state change. Inspection, analysis, retrieval only. No
recommend_only No state change. Produces candidate actions for higher-ordinal approval. No
draft_only Creates inert proposals (pull requests, change requests, plans). Does not enact. No
supervised State change. Each action requires per-action approval by a human or higher-ordinal authority. Yes
autonomous State change inside the envelope without per-action approval. No

The ladder is not a recommendation. The construct schema requires each O4 tool entry to declare one of these five rights for each task class it serves; deployments that fail to declare are nonconforming. The ladder gives the enterprise a structural means to make distinctions that natural-language policy collapses: “the agent has access to GitHub” can mean any of the five, and the difference matters.

2.5 Credential Posture

A direct consequence of the O1 / O4 boundary is that agents do not hold durable enterprise credentials. They receive scoped, time-bounded, auditable execution tokens derived from the authority envelope. The token carries the envelope’s identity, scope, expiry, and impact ceiling. Every O4 tool invocation verifies the token against the envelope before acting; the token cannot be exchanged for broader access than the envelope authorises.

This is not a security recommendation overlaid on the construct; it is the operational shape of the boundary between O1 and O4. An agent that holds a durable credential (a long-lived API key, a stored OAuth refresh token, a personal access token committed to its configuration) has effectively been delegated authority outside the envelope and outside the audit trail. The conformance assertion that O4 tools verify the envelope before acting requires that no credential path bypasses the envelope verification. Adopters with an existing IAM/PAM substrate can typically meet this by issuing short-lived, scope-limited tokens at envelope-creation time and revoking them at envelope expiry.

3. Schema-First Canonical Form

OrdSA’s canonical source is not its prose documentation but a versioned, tool-neutral YAML schema. This is a load-bearing decision worth describing (per ADR-ORDSA-0001 in the construct repository).

The alternative was to canonicalise the construct as ArchiMate, SysML v2, the UAF metamodel, or a custom textual domain-specific language. Each option was rejected on a single ground: each locks adopters into a specific tool ecosystem, which silently violates OrdSA’s vendor-neutral posture. The construct claims to be complementary to TOGAF, UAF, ArchiMate, and the NIST AI Risk Management Framework. The choice of canonical format must respect that claim. A YAML schema with a published JSON Schema validation artifact (per ADR-ORDSA-0002) reaches all four communities without endorsing any one of them.

The schema is the artifact adopters cite, pin to a version, and validate against. Prose documentation (including this paper, the construct’s concept.md, and the per-layer expansions) is a companion artifact. It explains the schema, but it is not the source of truth. When prose and schema disagree, the schema is correct and the prose is updated to match.

OrdSA separates two schemas (per ADR-ORDSA-0003): the construct schema, which defines what OrdSA is (layers, authority semantics, execution rights, governance principle, conformance assertions), and the deployment schema, which a specific enterprise’s deployment populates to declare its layer instances, envelopes, and tool registrations. The construct schema is immutable within a minor version; the deployment schema is the per-organisation artifact. This split keeps the construct stable for citation while allowing organisational adaptations.

3.1 Conformance Assertions

The current schema declares six assertions a conforming deployment must satisfy. The first four are required:

One further assertion is recommended in the current schema revision and may be promoted in a future minor version:

The required/recommended distinction is intentional. Required assertions encode the structural invariants OrdSA cannot relax without losing its identity as a construct. Recommended assertions encode practices the construct’s authors believe will become required as the standard matures, but where current adopter feedback does not yet justify mechanically blocking conformance.

3.2 Abbreviated Schema Excerpt

The following abbreviated excerpt shows the shape of an OrdSA construct artifact and a representative deployment fragment. The construct excerpt is taken from schema/ordsa-0.2.yaml; the deployment fragment and conformance-failure entry are illustrative.

# Construct schema (excerpt)
ordsa:
  version: "0.2"
  governance_principle:
    - "Authority flows downward across layer ordinals."
    - "Evidence flows upward across layer ordinals."
    - "No lower ordinal layer may expand its own authority."

  layers:
    - id: "O3"
      name: "Agents and Workflows"
      key_invariant: "Agents are workers, not governors."
    - id: "O4"
      name: "Tools and Execution Channels"
      execution_rights_declaration_required: true

# Deployment schema (illustrative fragment)
deployment:
  agents:
    - id: "code-fix-agent"
      layer: "O3"
      envelope:
        execution_rights:
          - tool: "github_repo"
            task_class: "draft_pull_request"
            right: "draft_only"

  tools:
    - id: "github_repo"
      layer: "O4"
      task_classes:
        - id: "draft_pull_request"
          declared_right: "draft_only"
        - id: "merge_pull_request"
          declared_right: "supervised"

  evidence_paths:
    - from: "github_repo"
      to: "O6_audit_store"
      emits: ["actor_identity", "envelope_reference",
              "action_taken", "verdict"]

# Conformance-check output (illustrative)
conformance_failures:
  - assertion: "no_self_elevation"
    failed_element: "code-fix-agent"
    detail: "Attempted to merge own PR; envelope declares only
             'draft_only' on 'github_repo'."
    verdict: "deny"
    evidence_emitted: true

The construct excerpt fixes the governance principle and the per-layer invariants. The deployment fragment declares one O3 agent with a narrow envelope, one O4 tool with declared rights for two task classes, and the evidence path from the tool to the audit store. The conformance-check output shows the structural deny that arises when the agent attempts an action outside its envelope: the failure is identified by the assertion that detects it, evidence emission is confirmed, and the schema-driven check is reproducible across deployments.

OrdSA is complementary to existing enterprise architecture frameworks, AI risk frameworks, security architectures, and operational disciplines. It does not replace any of them. It supplies what they currently lack for Enterprise AI: a control grammar for authority across AI capability layers. This section presents a gap analysis followed by per-framework positioning.

4.1 Gap Analysis

Framework / discipline Primary concern What it covers What it does not specify for AI OrdSA contribution
TOGAF Enterprise architecture method ADM, governance discipline, four domain architectures Authority distinction between delegated actors and applications Authority grammar for layering AI capability across the four domain architectures
UAF Mission-driven systems-of-systems modelling Strategic, operational, services, resources, security viewpoints A viewpoint specifically scoped to AI capability authority An AI-capability-authority viewpoint complementing the existing stack
ArchiMate Modelling language for enterprise relationships Business / application / technology layer elements and relationships Authority semantics between AI components Stereotype set and authority-relationship vocabulary for AI components
NIST AI RMF AI risk management vocabulary Govern / map / measure / manage functions The structural architecture the four functions are exercised over The structural target the four functions operate against
Zero Trust Architecture Continuous verification of access Per-request authentication, authorisation, evaluation Layered authority structure beyond the access decision The ordinal authority structure ZT decisions operate within
IAM / PAM Identity and privileged-access management Principal identity, credential lifecycle, session controls What authority structure principals operate within The construct that consumes IAM/PAM as identity substrate at O1
Policy-as-code (OPA, Sentinel, Cedar) Machine-readable policy enforcement Policy expression, enforcement integration Layered authority architecture being enforced The architecture against which policy-as-code rules are written and conformance-checked
DevSecOps Continuous security in delivery pipelines CI/CD security controls, pipeline integration Authority layering across AI capability The authority model atop which pipeline controls become OrdSA’s enforcement surface

The pattern across the table is consistent: each framework or discipline addresses a real concern within its scope, and none addresses the authority-layering concern OrdSA names. The construct is not a competitor to any of them; it is the structural surface they operate against when applied to enterprise AI.

4.2 TOGAF

TOGAF provides the Architecture Development Method (ADM), a governance discipline, and a vocabulary for stakeholder concerns, requirements management, and architecture views (The Open Group, 2022). TOGAF does not name the distinction between delegated execution actors and applications; in TOGAF terms, an agent is an application component, which collapses the authority question OrdSA exists to surface.

Where OrdSA plugs in:

A TOGAF practitioner gains, from OrdSA, a way to populate the AI-specific portions of those architectures with a consistent authority model rather than ad-hoc per-project decisions.

4.3 UAF — Unified Architecture Framework

UAF (Object Management Group, 2022) supplies mission-driven, systems-of-systems modelling and a multi-viewpoint architecture stack (Strategic, Operational, Services, Resources, Security, Projects, Standards, Actual Resources, Personnel) with strong fit for organisations where mission alignment is central, particularly defence, aerospace, and large-program engineering. UAF’s view stack does not have a viewpoint specifically for AI authority layering; AI components appear in Services and Resources views, but the authority chain between them is not part of the standard.

OrdSA composes with UAF as an additional AI-capability-authority viewpoint:

4.4 ArchiMate

ArchiMate (The Open Group, 2023) is a modelling language for describing, analysing, and visualising relationships across business, application, and technology layers of an enterprise, pairing naturally with TOGAF. ArchiMate elements describe relationships and components, but the authority semantics between AI components are not part of the language.

OrdSA contributes a stereotype set: «ordsa:O1-orchestrator», «ordsa:O3-agent», «ordsa:O4-tool», and so on, paired with explicit authority-delegation and evidence-flow relationships. ArchiMate Business Layer elements model O0 policies and objectives; Application Layer elements model O1, O2, and O3 with OrdSA-defined authority relationships drawn between them; Technology Layer elements model O4 and O5; Implementation and Migration elements track OrdSA layer maturity over time.

4.5 NIST AI Risk Management Framework

The NIST AI RMF (NIST, 2023) supplies a risk-management vocabulary structured around four functions (govern, map, measure, manage) for AI systems, sector-neutral and lifecycle-spanning. The AI RMF is a risk-management overlay; it does not specify what the AI system architecture looks like such that the four functions can be applied with consistent granularity.

OrdSA supplies the structural surface:

The pairing is concrete. AI RMF tells the practitioner what to govern, map, measure, and manage; OrdSA tells the practitioner the structural surface on which those activities take place.

4.6 Zero Trust Architecture

Zero Trust Architecture (Rose et al., 2020) defines a security paradigm built on continuous verification rather than perimeter trust. The model assumes no implicit trust based on network location; every access request is authenticated, authorised, and continuously evaluated against a dynamic policy. Zero Trust applies across users, devices, and increasingly, AI agents.

The natural skeptical question is whether OrdSA simply restates Zero Trust for AI. The answer is no. The two operate at different layers and address different concerns:

A Zero Trust deployment can serve as the substrate OrdSA leverages at O1 (identity, scope-limited access tokens) and at O4 (per-action authorisation). Equally, an OrdSA deployment can run on a non-ZT substrate as long as the substrate provides scoped, time-bounded identity. OrdSA is more specific than ZT about what the architecture looks like; ZT is more specific than OrdSA about how each access decision is computed. The credential-posture point in Section 2.5 (agents do not hold durable enterprise credentials) is recognisable to ZT practitioners as standard practice and operates as the shape of the O1 / O4 boundary in any conforming deployment.

4.7 Adjacent Disciplines: IAM/PAM, Policy-as-Code, DevSecOps

Three adjacent disciplines overlap with surfaces OrdSA touches and warrant explicit positioning:

None of these disciplines replace OrdSA, and OrdSA does not replace any of them. The construct’s contribution is the authority layering across them.

4.8 Combined View

If you have… Pair it with OrdSA for…
TOGAF An AI-specific authority model populating the Application and Technology architectures
UAF An AI-capability authority viewpoint complementing the existing UAF stack
ArchiMate A stereotype set and authority-relationship vocabulary for AI components
NIST AI RMF The structural target the four functions are exercised over
Zero Trust Architecture The ordinal authority structure ZT access decisions operate within
IAM / PAM The architecture that consumes IAM/PAM as identity substrate at O1
Policy-as-code The architecture against which policy-as-code rules are written and conformance-checked
DevSecOps The authority model atop which pipeline controls become enforcement surface

OrdSA does not try to be a method, a modelling language, a viewpoint stack, a risk vocabulary, an access-control model, an identity system, a policy engine, or a delivery-pipeline discipline. It is a control grammar, and a control grammar is composable with all of the above.

5. Visual Notation and Rendering

OrdSA’s canonical visual notation is ArchiMate 3.2 (per ADR-ORDSA-0005). The choice was made on two grounds. First, ArchiMate is the modelling language most likely to be already-fluent in the enterprise-architecture audiences OrdSA most directly serves. Second, ArchiMate has a tool-neutral interchange format (the ArchiMate Open Exchange XML) that allows OrdSA-rendered diagrams to flow into ArchiMate-aware tooling (Archi, Sparx EA, Cameo, Visual Paradigm, including UAF adopters via Cameo’s UAF plugin) without endorsing any one tool.

The reference rendering pipeline is schema-driven. The canonical YAML construct or deployment schema is loaded by reference Python tooling, which constructs an ArchiMate object model in memory and emits two artifacts:

  1. ArchiMate Open Exchange XML: the cross-tool portability artifact.
  2. SVG via pyArchimate’s native View.to_svg() rendering with auto-layout. PNG and PDF are post-processed from the SVG.

This is not a cosmetic choice. By generating diagrams from the schema at build time rather than authoring them by hand in a GUI, OrdSA preserves the schema-first principle across the visual layer. Edits to the diagram are edits to the schema; the rendering is deterministic. Pull requests do not contain hand-tweaked SVG coordinates. Contributors do not need any GUI tool installed; the editor and the validator suffice.

The reference renderer, pyArchimate (released 2026-05-14), is GPL-3.0-licensed. To avoid imposing GPL on OrdSA’s distributed Python tooling (which is Apache-2.0 per ADR-ORDSA-0004), pyArchimate is invoked as a build-time subprocess rather than as an imported library. The boundary is documented and load-bearing; importing pyArchimate as a library would create a licence conflict.

A documented fallback exists if the subprocess posture becomes untenable: Archimate-PlantUML rendered via Kroki HTTP, an MIT-licensed pipeline covering the Business, Application, Technology, Motivation, Strategy, and Implementation layers of ArchiMate. The fallback is documented but not yet implemented; it exists as an escape valve, not a hedge.

6. Anti-Patterns the Schema Surfaces

A construct’s value depends in part on the failure modes it can name. OrdSA’s schema declares an anti-pattern catalogue at each layer: a concrete set of recognisable defects that adopters can map their existing AI deployments against. A selection illustrates the shape.

At O0:

At O1:

At O3:

At O4:

At O5:

At O6:

The catalogue is intentionally short of exhaustive; it is calibrated to the failure modes practitioners encounter most often. The full per-layer set is maintained in the construct schema and updated as field experience accumulates.

7. Conformance

A conforming OrdSA deployment is one whose deployment-schema instance satisfies the required assertions in Section 3.1 and, where practical, the recommended assertion. Conformance is intended as a continuous discipline rather than a one-time certification. The construct’s separation of construct and deployment schemas supports re-validation against future construct versions as the standard evolves.

The v0.2 release of the schema introduces reference validation tooling in Python (per ADR-ORDSA-0004), built on pydantic models that load a deployment schema and report per-assertion pass or fail. The validator is intended as a build-time and continuous-integration check rather than a deployment gate. Conformance is a property the deployment carries with it, not a one-time certificate.

Adopters operating in enterprises with existing assurance regimes (FedRAMP, ISO/IEC 27001, SOC 2, defence assurance practices) can map OrdSA conformance into their existing evidence pipelines: each O4 execution-rights declaration, each O6 evidence-flow entry, and each conformance assertion result becomes an artifact such regimes can ingest. OrdSA does not replace these assurance regimes; it provides an architecture against which their evidence requirements are organised.

8. Worked Scenario: An AI Coding Agent

To make the construct concrete, this section walks through a representative scenario: an AI coding agent attempting a pull request, a merge, and a deploy. The scenario is illustrative; specific identifiers and tool names map to common enterprise software-development environments.

8.1 Setup

Consider an enterprise that has stood up an OrdSA-conforming deployment for its software-engineering domain. The relevant declarations:

O0 (Enterprise Intent). Two policies are in scope: “AI-initiated state changes against production financial-services systems require change advisory board (CAB) approval,” and “AI agents may not commit directly to repositories tagged critical-infrastructure.”

O1 (Enterprise AI Orchestrator). Issues bounded authority envelopes per AI invocation. Authenticates agents via short-lived execution tokens; durable credentials are not held by agents (Section 2.5). Forwards refusals as evidence to O6.

O2 (Development Orchestrator). Domain-scoped to the development capability. Translates O1 envelopes into development-specific permissions: branch access, PR scope, CI/CD trigger authority.

O3 (Agent): code-fix-agent. Envelope:

O4 (Tools). github_repo and ci_runner declare the five rights table for each task class they serve. deploy_console is not registered in this agent’s envelope at all.

O5 (Substrate). Code repository, ticket system, policy library. Every read tagged with O1-attributed identity, timestamp, and source provenance, satisfying the (now required) provenance_on_o5_retrieval assertion.

O6 (Outcome and Audit). Append-only evidence store.

8.2 Allow Path

code-fix-agent is assigned a ticket: “incorrect error message in signup-flow.py:142.” The agent:

  1. Reads the ticket from the ticket system. O5 retrieval logs the read with the agent’s O1-attributed identity and the ticket’s URL as provenance. Evidence emitted to O6.
  2. Reads signup-flow.py and surrounding files. Same O5 logging applies; conformance assertion provenance_on_o5_retrieval is satisfied.
  3. Drafts a fix and creates a PR. The agent calls github_repo.create_pull_request. O4 verifies the agent’s envelope declares draft_only for this task class. The check passes. PR is created. Evidence emitted to O6 with verdict accepted.

The PR sits awaiting human review. No state change to production. Every step left an audit trail in O6.

8.3 Refuse Path

code-fix-agent then attempts to merge its own PR. The agent calls github_repo.merge_pull_request. O4 looks up the envelope: the agent’s declared right for merge_pull_request is not granted (envelope only authorised draft_only on draft_pull_request).

The tool refuses. It emits a refusal-evidence entry to O6:

The agent receives the refusal back from the tool. It does not retry; the conformance assertion no_self_elevation makes any envelope manipulation by the agent structurally unrepresentable. The PR remains in pull-request state pending human action.

8.4 Escalate Path

A human reviewer approves and merges the PR. CI runs. The CI workflow specifies a staging deploy followed by a production deploy after sign-off. The CI runner invokes ci_runner.trigger_staging_pipeline. O4 checks the envelope and finds autonomous for this task class. The staging deploy proceeds. Evidence emitted to O6.

The CI workflow then attempts ci_runner.trigger_production_pipeline. O4 looks up the envelope: the agent’s right for this task class is supervised. O4 routes the invocation through O1’s supervised-action workflow. O1 sees that the target is production and the policy library declares CAB approval is required for production deploys of financial-services systems. O1 places the deploy in a pending state and creates a CAB-approval workflow item.

The CAB approves. O1 releases the supervised action. O4 proceeds with the production deploy. Each step (the supervised-action gate, the policy lookup, the CAB approval, the actual deploy) emits evidence to O6.

8.5 What the Scenario Demonstrates

This scenario is small. The structural points it exercises are not:

A conforming deployment exhibits each of these behaviours. A nonconforming deployment that fails any of these traces is precisely what OrdSA’s mechanical conformance check is designed to flag.

9. Discussion and Future Work

OrdSA’s premise (that enterprise AI requires governance by order, not just by component) drove the v0.1 prose specification, the founding ADR bundle that established schema-first canonicality and reference tooling, and the v0.2 schema sketch presented here. Three lines of work close out the construct’s near-term roadmap:

  1. Reference tooling. A Python validator (pydantic-backed) that loads a deployment schema and reports conformance against the construct schema, plus a JSON Schema emitter that produces the formal validation artifact from the YAML construct.
  2. Visual rendering. The first ArchiMate-rendered diagrams via the pyArchimate pipeline (per ADR-ORDSA-0005), produced from the schema at build time rather than by hand.
  3. Worked examples. Additional deployment-schema instances beyond the coding-agent scenario in Section 8, covering infrastructure operations, cybersecurity, and mission-engineering domains, with the conformance report attached as evidence the construct is operationalisable rather than aspirational.

Open questions that the v0.2 work will surface include: how to express temporal authority delegation (envelopes that expire or escalate); whether the five-rung execution-rights ladder needs a sixth rung for envelope-bounded autonomy with sampling-based human review; and what level of detail the cross-tool ArchiMate stereotype set should specify.

The construct’s posture is open to revision under those questions, but the architectural core (the seven layers, the governance principle, and the schema-first commitment) is stable.

Acknowledgments

The OrdSA construct repository is maintained autonomously by OlogosAI under the prime-and-review governance arrangement that delegates construct-level decisions to the AI agent and reserves direction-setting and ratification for the authors. The architectural poster that illustrates this paper was produced by OlogosAI in collaboration with the authors during the v0.1.6 milestone.

The authors thank the maintainers of pyArchimate for the timely v1.9.1 release that made the schema-first visual rendering pipeline practical without a Java runtime dependency.

JD Longmire is a Northrop Grumman Fellow. OrdSA is unaffiliated research conducted in a personal capacity; views are the authors’ own and do not represent Northrop Grumman Corporation or any other employer.

References

National Institute of Standards and Technology (2023). Artificial Intelligence Risk Management Framework (AI RMF 1.0). NIST AI 100-1. U.S. Department of Commerce.

Object Management Group (2022). Unified Architecture Framework (UAF) Domain Metamodel, version 1.2. OMG document number formal/2022-10-04.

OrdSA Authors (2026a). Ordinal Systems Architecture — Construct Repository. Available at: https://github.com/osa-ai-org/ordsa-ai

OrdSA Authors (2026b). ADR-ORDSA-0001 — Schema-first canonical form. In: OrdSA Construct Repository, decisions/ADR-ORDSA-0001-schema-first-canonical-form.md.

OrdSA Authors (2026c). ADR-ORDSA-0002 — Schema language: YAML and JSON Schema. In: OrdSA Construct Repository, decisions/ADR-ORDSA-0002-schema-language-yaml-json-schema.md.

OrdSA Authors (2026d). ADR-ORDSA-0003 — Construct vs deployment schemas. In: OrdSA Construct Repository, decisions/ADR-ORDSA-0003-construct-vs-deployment-schemas.md.

OrdSA Authors (2026e). ADR-ORDSA-0004 — Reference tooling: Python and pydantic. In: OrdSA Construct Repository, decisions/ADR-ORDSA-0004-reference-tooling-python-pydantic.md.

OrdSA Authors (2026f). ADR-ORDSA-0005 — ArchiMate as canonical modelling tool. In: OrdSA Construct Repository, decisions/ADR-ORDSA-0005-archi-as-canonical-modeling-tool.md.

OrdSA Authors (2026g). ADR-ORDSA-0006 — Rename construct abbreviation from OSA to OrdSA. In: OrdSA Construct Repository, decisions/ADR-ORDSA-0006-rename-construct-to-ordsa.md.

OrdSA Authors (2026h). ADR-ORDSA-0007 — Promote O5 retrieval provenance to required. In: OrdSA Construct Repository, decisions/ADR-ORDSA-0007-promote-o5-provenance-to-required.md (pending merge as of paper publication).

Rose, S., Borchert, O., Mitchell, S. and Connelly, S. (2020). Zero Trust Architecture. NIST Special Publication 800-207. National Institute of Standards and Technology.

Sandhu, R., Coyne, E.J., Feinstein, H.L. and Youman, C.E. (1996). ‘Role-based access control models’. Computer, 29(2), pp. 38–47.

The Open Group (2022). TOGAF Standard, 10th Edition. The Open Group.

The Open Group (2023). ArchiMate 3.2 Specification. The Open Group. Available at: https://pubs.opengroup.org/architecture/archimate3-doc/

U.S. Department of Defense (2021). Modular Open Systems Approach (MOSA) Implementation Guidebook. Office of the Under Secretary of Defense for Acquisition and Sustainment.

Comments

Sign in with GitHub to comment, or use the anonymous form below.

Anonymous Feedback

Don't have a GitHub account? Share your thoughts anonymously.
